AXI 02 AT
- Provide a PoE powered Dante® audio interface that shall support two mono analog outputs and a two-channel S/PDIF output, sourced from a Dante audio network.
- Two output Dante audio interface with digital to analog conversion up to 96 kHz sampling rate with 24-bit resolution
- Output Requirements
- Outputs will be routed from a Dante audio network
- Shall support two mono line level, balanced or unbalanced outputs that accept 3.5 mm captive screw connectors
- Shall provide digital to analog conversion, selectable up to 96 kHz sampling rate with 24-bit resolution
- Shall support a two-channel S/PDIF output that duplicates what is routed to the analog outputs, prior to analog output attenuation controls
- Audio Device Requirements
- Shall provide a Dante to analog output signal-to-noise ratio greater than 95dB measured from 20 Hz to 20 kHz, at maximum output, unweighted
- Shall provide a THD+N measurement of less than 0.01% measured at 20 Hz to 20 kHz, at maximum level
- Configuration Software Requirements

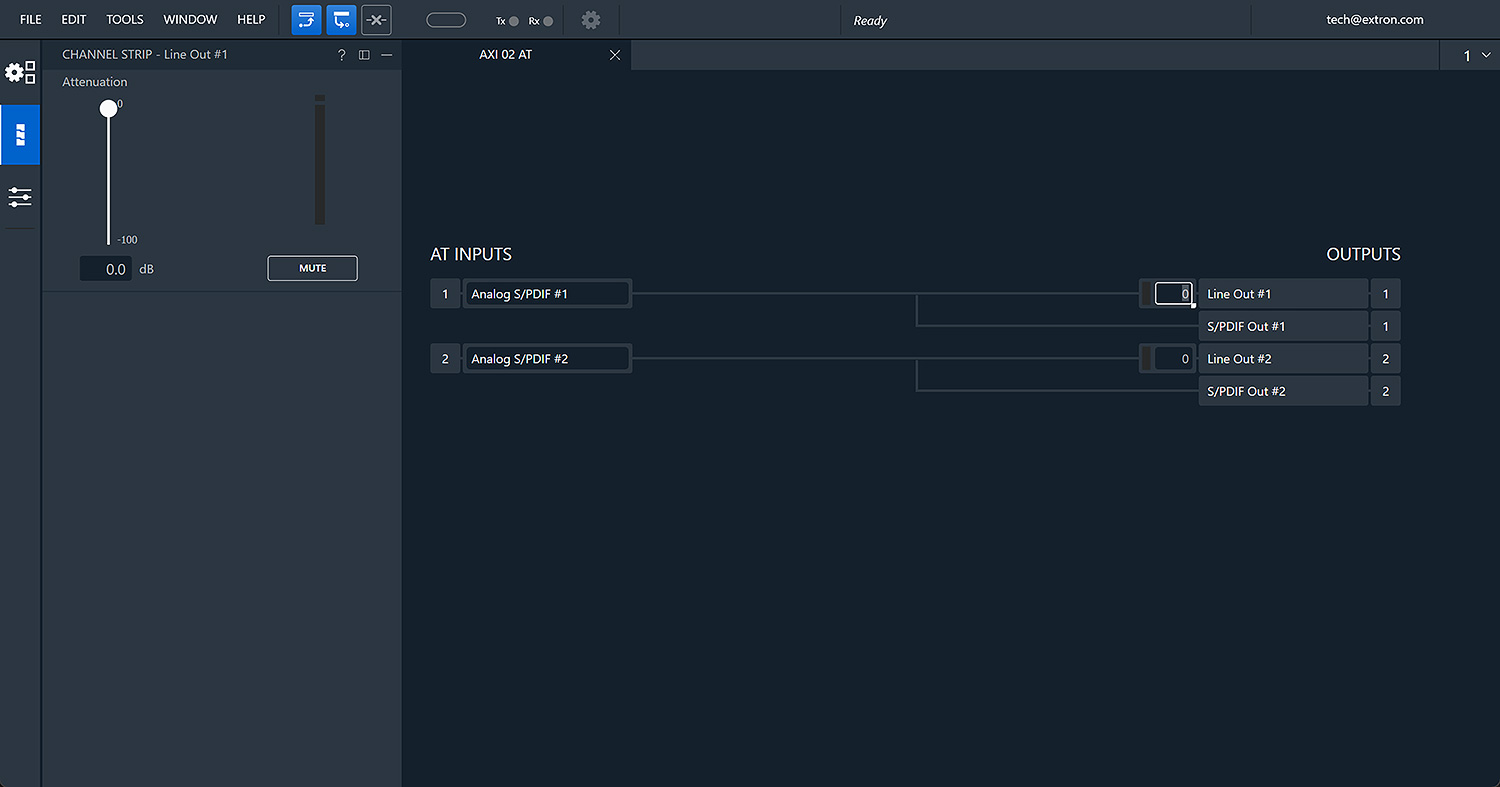

- Shall support PC-based DSP Configurator Software allowing flexible control of the interface’s fixed architecture
- Shall provide a Live mode for real-time configuration of parameters
- Shall provide an Emulate mode for offline configuration
- Shall provide a single window view of all outputs
- Shall provide setup and configuration of gain stages and channel mute
- Shall provide cut, copy, and paste editing between processing blocks
- Shall provide real-time metering of levels within each gain block in Live mode
- Shall provide a Meter Bridge window for real-time metering of all output channels with clipping indication in Live mode
- Shall provide keyboard-based navigation of configuration software utilizing bidirectional controls, keyboard shortcuts, and spreadsheet software-style commands
- Shall provide file saving in both Live and Emulate mode
- Shall provide configuration push when switching from Emulation mode to Live mode
- Shall provide configuration and file saving of multiple, linked, or networked processors from a single configuration session
- Dante Audio Networking Requirements
- Shall support incoming channels over a local area network using standard Internet protocols
- Shall support Dante Controller software for digital audio network configuration
- Shall support Dante Domain Manager network management software for network security and logical segmenting.
- Shall support the AES67 standard for interoperability with other devices that also support AES67
- Shall provide an RJ-45 connector to support Dante audio network connection and direct interconnection between Dante-enabled products, such as Extron DMP 128 Plus AT units
- Shall provide uncompressed digital audio up to 96 kHz sampling rate with 24-bit resolution
- Shall provide selectable latency in Dante Controller Software
- Configuration Requirements
- Shall provide Ethernet configuration via the Dante protocol using DSP Configurator Software
- Shall support configuration via USB using DSP Configurator Software
- Front Panel Requirements
- Shall provide a green LED for power indication
- Shall provide an RJ-45 connector to support PoE, Dante audio network connection, and direct interconnection between Dante-enabled products, such as Extron DMP 128 Plus AT units
- Shall provide a Configuration port on mini USB B connector
- Rear Panel Requirements
- Shall provide two balanced/unbalanced analog outputs that accept 3.5 mm captive screw connectors
- Shall provide an RCA coaxial connector for two-channel S/PDIF digital audio output
- General Requirements
- Shall be enclosed in a 1U, eighth rack width plastic enclosure
- Shall include an Extron ZipClip™ 100 mounting bracket
- Shall support use of optional Extron ZipClip 200 mounting bracket
- Shall support use of optional Extron Rack Shelves
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Shall comply with appropriate requirements of RoHS and WEEE
- Shall provide three year parts and labor warranty
- Output Requirements
- Approved device shall be the Extron AXI 02 AT, part number 60-1753-01; no alternates or equals.
- Two output Dante audio interface with digital to analog conversion up to 96 kHz sampling rate with 24-bit resolution
