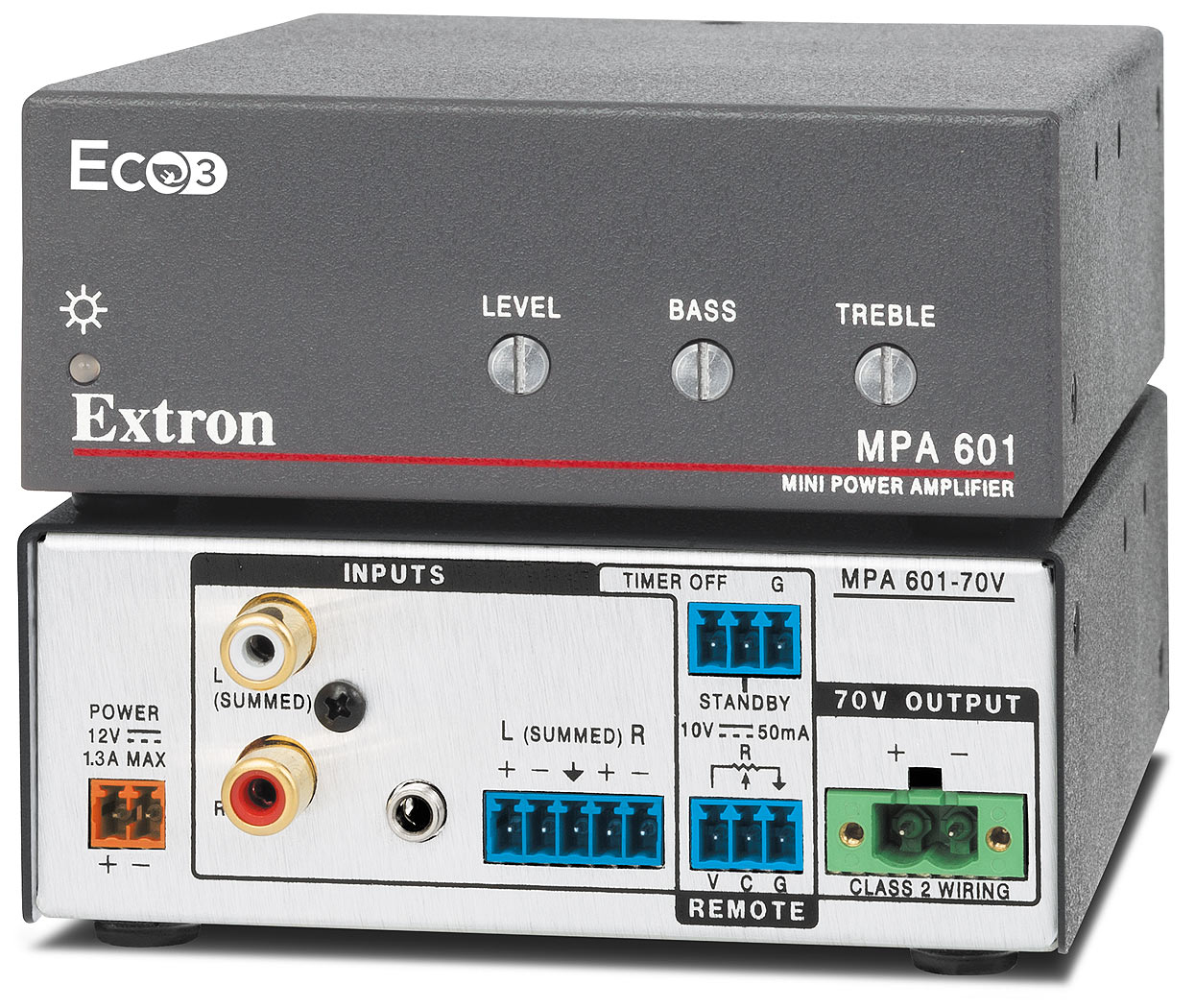

MPA 601-70V
- Provide a compact, energy efficient audio power amplifier that shall support three analog stereo or mono inputs and one amplified mono analog output with 60 watts rms into a 70 volt line.
- Compact mono amplifier with 60 watts rms power output into a 70 volt line and ENERGY STAR® qualification
- Input Requirements
- Shall support one stereo, balanced or unbalanced signal on one 5-pole, 3.5 mm captive screw connector
- Shall support one stereo, unbalanced signal on one pair of RCA connectors
- Shall support one stereo, unbalanced signal on one 3.5 mm stereo mini jack
- Shall provide individual buffering for each input
- Shall provide stereo input summing of all inputs into a single mono signal
- Output Requirements
- Shall support one mono speaker level signal on one 2-pole, 5 mm captive screw connector
- Shall provide a total of 60 watts rms output power into a 70 volt line measured at 1 kHz with 1% THD
- Shall provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Shall support a minimum load impedance of 83 ohms
- Shall provide a THD+N measurement of less than 0.1% measured at 1 kHz and 3 dB below clipping
- Shall provide damping factor of greater than 100
- Shall provide a high pass filter for frequencies below 80 Hz with a 12 dB per octave rolloff
- Amplifier Requirements
- Shall utilize an efficient Class D amplifier design
- Shall provide Class D Ripple Suppression technology
- Shall be convection cooled and operate without fans or vents
- Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
- Power Requirements
- In conjunction with power supply, shall draw 14.8 watts during typical (1/8 power) operation
- In conjunction with power supply, shall draw 6.2 watts during quiescent operation
- Shall provide a low power standby mode
- Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
- Shall draw less than 1 watt while in standby mode
- Shall return to full power status in less than one second upon signal detection while in standby mode
- Shall feature an input signal detection threshold of -44 dBV, +/- 3 dB on unbalanced RCA and 3.5 mm stereo mini jack inputs to deactivate standby mode
- Shall feature an input signal detection threshold of -30 dBu, +/- 3 dB on balanced captive screw connector input to deactivate standby mode
- Shall be ENERGY STAR qualified
- Shall provide energy-efficient external universal power supply with 2-pole captive screw connector
- Shall be universal in-line power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
- Shall provide output of 12 VDC, 3 A, 36 watts
- Shall support use of optional Extron ZipClip™ 200 mounting bracket
- Shall meet energy efficiency level V and bear the UL Environment Energy Efficiency Certification (EEC) Mark
- Control Requirements
- Shall support remote control of volume and muting on 3-pole, 3.5 mm captive screw connector using optional Extron analog volume and mute controllers
- Front Panel Requirements
- Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
- Shall provide potentiometers for bass, treble, and input level adjustment
- Rear Panel Requirements
- Shall provide one input on one 5-pole, 3.5 mm captive screw connector
- Shall provide one input on one pair of RCA connectors
- Shall provide one input on one 3.5 mm stereo mini jack
- Shall provide one output on one 2-pole, 5 mm captive screw connector
- Shall provide remote volume and mute control port on one 3-pole, 3.5 mm captive screw connector
- General Requirements
- Shall be enclosed in a rack-mountable 1U, quarter rack width metal enclosure
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall be UL rated for use in plenum airspaces and meet UL 2043 compliance for heat and smoke release, excluding the power supply
- Shall meet UL 60065 and IEC 60065 for safety
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class B, ICES Class B, KCC, and VCCI
- Shall comply with appropriate requirements of CEC, ENERGY STAR, EU code of conduct, RoHS, and WEEE
- Shall provide three year parts and labor warranty
- Input Requirements
- Approved device shall be the Extron MPA 601-70V, part number 60-1449-01; no alternates or equals.
- Compact mono amplifier with 60 watts rms power output into a 70 volt line and ENERGY STAR® qualification
MPA 601-70V
- Provide a compact, energy efficient audio power amplifier that shall support three analog stereo or mono inputs and one amplified mono analog output with 60 watts rms into a 70 volt line.
- Compact mono amplifier with 60 watts rms power output into a 70 volt line and ENERGY STAR® qualification
- Input Requirements
- Shall support one stereo, balanced or unbalanced signal on one 5-pole, 3.5 mm captive screw connector
- Shall support one stereo, unbalanced signal on one pair of RCA connectors
- Shall support one stereo, unbalanced signal on one 3.5 mm stereo mini jack
- Shall provide individual buffering for each input
- Shall provide stereo input summing of all inputs into a single mono signal
- Output Requirements
- Shall support one mono speaker level signal on one 2-pole, 5 mm captive screw connector
- Shall provide a total of 60 watts rms output power into a 70 volt line measured at 1 kHz with 1% THD
- Shall provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Shall support a minimum load impedance of 83 ohms
- Shall provide a THD+N measurement of less than 0.1% measured at 1 kHz and 3 dB below clipping
- Shall provide damping factor of greater than 100
- Shall provide a high pass filter for frequencies below 80 Hz with a 12 dB per octave rolloff
- Amplifier Requirements
- Shall utilize an efficient Class D amplifier design
- Shall provide Class D Ripple Suppression technology
- Shall be convection cooled and operate without fans or vents
- Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
- Power Requirements
- In conjunction with power supply, shall draw 14.8 watts during typical (1/8 power) operation
- In conjunction with power supply, shall draw 6.2 watts during quiescent operation
- Shall provide a low power standby mode
- Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
- Shall draw less than 1 watt while in standby mode
- Shall return to full power status in less than one second upon signal detection while in standby mode
- Shall feature an input signal detection threshold of -44 dBV, +/- 3 dB on unbalanced RCA and 3.5 mm stereo mini jack inputs to deactivate standby mode
- Shall feature an input signal detection threshold of -30 dBu, +/- 3 dB on balanced captive screw connector input to deactivate standby mode
- Shall be ENERGY STAR qualified
- Shall provide energy-efficient external universal power supply with 2-pole captive screw connector
- Shall be universal in-line power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
- Shall provide output of 12 VDC, 3 A, 36 watts
- Shall support use of optional Extron ZipClip™ 200 mounting bracket
- Shall meet energy efficiency level V and bear the UL Environment Energy Efficiency Certification (EEC) Mark
- Control Requirements
- Shall support remote control of volume and muting on 3-pole, 3.5 mm captive screw connector using optional Extron analog volume and mute controllers
- Front Panel Requirements
- Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
- Shall provide potentiometers for bass, treble, and input level adjustment
- Rear Panel Requirements
- Shall provide one input on one 5-pole, 3.5 mm captive screw connector
- Shall provide one input on one pair of RCA connectors
- Shall provide one input on one 3.5 mm stereo mini jack
- Shall provide one output on one 2-pole, 5 mm captive screw connector
- Shall provide remote volume and mute control port on one 3-pole, 3.5 mm captive screw connector
- General Requirements
- Shall be enclosed in a rack-mountable 1U, quarter rack width metal enclosure
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall be UL rated for use in plenum airspaces and meet UL 2043 compliance for heat and smoke release, excluding the power supply
- Shall meet UL 60065 and IEC 60065 for safety
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class B, ICES Class B, KCC, and VCCI
- Shall comply with appropriate requirements of CEC, ENERGY STAR, EU code of conduct, RoHS, and WEEE
- Shall provide three year parts and labor warranty
- Input Requirements
- Approved device shall be the Extron MPA 601-70V, part number 60-1449-01; no alternates or equals.
- Compact mono amplifier with 60 watts rms power output into a 70 volt line and ENERGY STAR® qualification

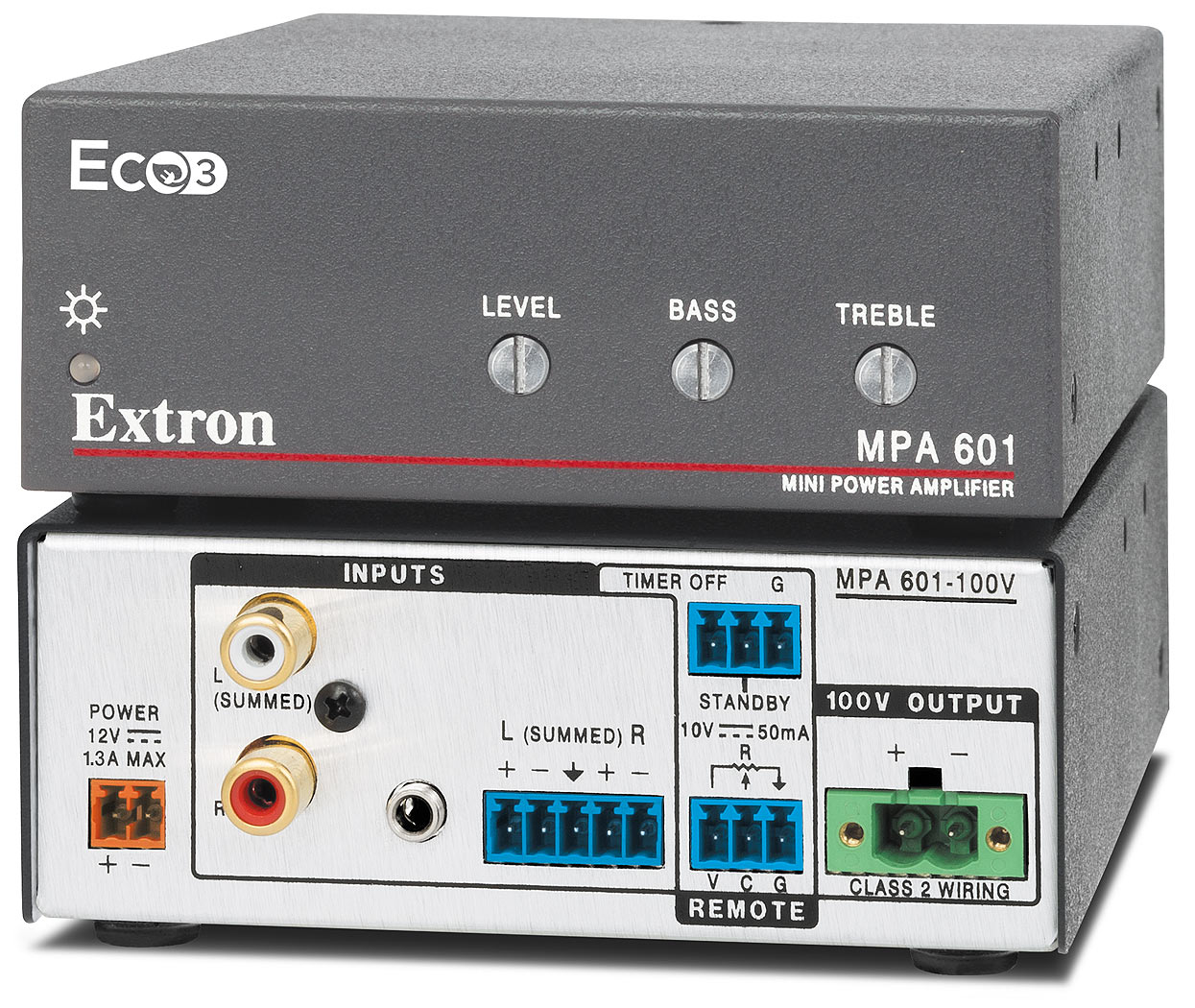

MPA 601-100V
- Provide a compact, energy efficient audio power amplifier that shall support three analog stereo or mono inputs and one amplified mono analog output with 60 watts rms into a 100 volt line.
- Compact mono amplifier with 60 watts rms power output into a 100 volt line and ENERGY STAR® qualification
- Input Requirements
- Shall support one stereo, balanced or unbalanced signal on one 5-pole, 3.5 mm captive screw connector
- Shall support one stereo, unbalanced signal on one pair of RCA connectors
- Shall support one stereo, unbalanced signal on one 3.5 mm stereo mini jack
- Shall provide individual buffering for each input
- Shall provide stereo input summing of all inputs into a single mono signal
- Output Requirements
- Shall support one mono speaker level signal on one 2-pole, 5 mm captive screw connector
- Shall provide a total of 60 watts rms output power into a 100 volt line measured at 1 kHz with 1% THD
- Shall provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Shall support a minimum load impedance of 83 ohms
- Shall provide a THD+N measurement of less than 0.1% measured at 1 kHz and 3 dB below clipping
- Shall provide damping factor of greater than 100
- Shall provide a high pass filter for frequencies below 80 Hz with a 12 dB per octave rolloff
- Amplifier Requirements
- Shall utilize an efficient Class D amplifier design
- Shall provide Class D Ripple Suppression technology
- Shall be convection cooled and operate without fans or vents
- Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
- Power Requirements
- In conjunction with power supply, shall draw 14.8 watts during typical (1/8 power) operation
- In conjunction with power supply, shall draw 6.2 watts during quiescent operation
- Shall provide a low power standby mode
- Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
- Shall draw less than 1 watt while in standby mode
- Shall return to full power status in less than one second upon signal detection while in standby mode
- Shall feature an input signal detection threshold of -44 dBV, +/- 3 dB on unbalanced RCA and 3.5 mm stereo mini jack inputs to deactivate standby mode
- Shall feature an input signal detection threshold of -30 dBu, +/- 3 dB on balanced captive screw connector input to deactivate standby mode
- Shall be ENERGY STAR qualified
- Shall provide energy-efficient external universal power supply with 2-pole captive screw connector
- Shall be universal in-line power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
- Shall provide output of 12 VDC, 3 A, 36 watts
- Shall support use of optional Extron ZipClip™ 200 mounting bracket
- Shall meet energy efficiency level V and bear the UL Environment Energy Efficiency Certification (EEC) Mark
- Control Requirements
- Shall support remote control of volume and muting on 3-pole, 3.5 mm captive screw connector using optional Extron analog volume and mute controllers
- Front Panel Requirements
- Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
- Shall provide potentiometers for bass, treble, and input level adjustment
- Rear Panel Requirements
- Shall provide one input on one 5-pole, 3.5 mm captive screw connector
- Shall provide one input on one pair of RCA connectors
- Shall provide one input on one 3.5 mm stereo mini jack
- Shall provide one output on one 2-pole, 5 mm captive screw connector
- Shall provide remote volume and mute control port on one 3-pole, 3.5 mm captive screw connector
- General Requirements
- Shall be enclosed in a rack-mountable 1U, quarter rack width metal enclosure
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall be UL rated for use in plenum airspaces and meet UL 2043 compliance for heat and smoke release, excluding the power supply
- Shall meet UL 60065 and IEC 60065 for safety
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class B, ICES Class B, and VCCI
- Shall comply with appropriate requirements of CEC, ENERGY STAR, EU code of conduct, RoHS, and WEEE
- Shall provide three year parts and labor warranty
- Input Requirements
- Approved device shall be the Extron MPA 601-100V, part number 60-1449-11; no alternates or equals.
- Compact mono amplifier with 60 watts rms power output into a 100 volt line and ENERGY STAR® qualification
MPA 601-100V
- Provide a compact, energy efficient audio power amplifier that shall support three analog stereo or mono inputs and one amplified mono analog output with 60 watts rms into a 100 volt line.
- Compact mono amplifier with 60 watts rms power output into a 100 volt line and ENERGY STAR® qualification
- Input Requirements
- Shall support one stereo, balanced or unbalanced signal on one 5-pole, 3.5 mm captive screw connector
- Shall support one stereo, unbalanced signal on one pair of RCA connectors
- Shall support one stereo, unbalanced signal on one 3.5 mm stereo mini jack
- Shall provide individual buffering for each input
- Shall provide stereo input summing of all inputs into a single mono signal
- Output Requirements
- Shall support one mono speaker level signal on one 2-pole, 5 mm captive screw connector
- Shall provide a total of 60 watts rms output power into a 100 volt line measured at 1 kHz with 1% THD
- Shall provide a signal-to-noise ratio of greater than 90 dB measured from 20 Hz to 20 kHz, unweighted
- Shall support a minimum load impedance of 83 ohms
- Shall provide a THD+N measurement of less than 0.1% measured at 1 kHz and 3 dB below clipping
- Shall provide damping factor of greater than 100
- Shall provide a high pass filter for frequencies below 80 Hz with a 12 dB per octave rolloff
- Amplifier Requirements
- Shall utilize an efficient Class D amplifier design
- Shall provide Class D Ripple Suppression technology
- Shall be convection cooled and operate without fans or vents
- Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
- Power Requirements
- In conjunction with power supply, shall draw 14.8 watts during typical (1/8 power) operation
- In conjunction with power supply, shall draw 6.2 watts during quiescent operation
- Shall provide a low power standby mode
- Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
- Shall draw less than 1 watt while in standby mode
- Shall return to full power status in less than one second upon signal detection while in standby mode
- Shall feature an input signal detection threshold of -44 dBV, +/- 3 dB on unbalanced RCA and 3.5 mm stereo mini jack inputs to deactivate standby mode
- Shall feature an input signal detection threshold of -30 dBu, +/- 3 dB on balanced captive screw connector input to deactivate standby mode
- Shall be ENERGY STAR qualified
- Shall provide energy-efficient external universal power supply with 2-pole captive screw connector
- Shall be universal in-line power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
- Shall provide output of 12 VDC, 3 A, 36 watts
- Shall support use of optional Extron ZipClip™ 200 mounting bracket
- Shall meet energy efficiency level V and bear the UL Environment Energy Efficiency Certification (EEC) Mark
- Control Requirements
- Shall support remote control of volume and muting on 3-pole, 3.5 mm captive screw connector using optional Extron analog volume and mute controllers
- Front Panel Requirements
- Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
- Shall provide potentiometers for bass, treble, and input level adjustment
- Rear Panel Requirements
- Shall provide one input on one 5-pole, 3.5 mm captive screw connector
- Shall provide one input on one pair of RCA connectors
- Shall provide one input on one 3.5 mm stereo mini jack
- Shall provide one output on one 2-pole, 5 mm captive screw connector
- Shall provide remote volume and mute control port on one 3-pole, 3.5 mm captive screw connector
- General Requirements
- Shall be enclosed in a rack-mountable 1U, quarter rack width metal enclosure
- Shall meet regulatory compliances
- Shall meet safety compliances under CE, c-UL, and UL
- Shall be UL rated for use in plenum airspaces and meet UL 2043 compliance for heat and smoke release, excluding the power supply
- Shall meet UL 60065 and IEC 60065 for safety
- Shall meet EMI/EMC compliances under CE, C-tick, FCC Class B, ICES Class B, and VCCI
- Shall comply with appropriate requirements of CEC, ENERGY STAR, EU code of conduct, RoHS, and WEEE
- Shall provide three year parts and labor warranty
- Input Requirements
- Approved device shall be the Extron MPA 601-100V, part number 60-1449-11; no alternates or equals.
- Compact mono amplifier with 60 watts rms power output into a 100 volt line and ENERGY STAR® qualification
アイテムをカートに追加する
Order Message Number
製品番号
注: Extron products using the Universal AC Outlet accept a number of different AC plug types. Before use, ensure that the device meets all regulatory requirements for your region and complies with all applicable local safety and electrical codes and standards.
現在の合計金額:
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
製品をEメールでシェア
MPA 601
70/100 Vモノラルミニパワーアンプ(60 W)
Eメールアドレスを正しく入力してください。
ありがとうございます。Emailの送信が完了しました。
Eメール送信中にエラーが発生しました。しばらくしてからもう一度お試しください。
Chrome
Firefox
Edge
Safari
