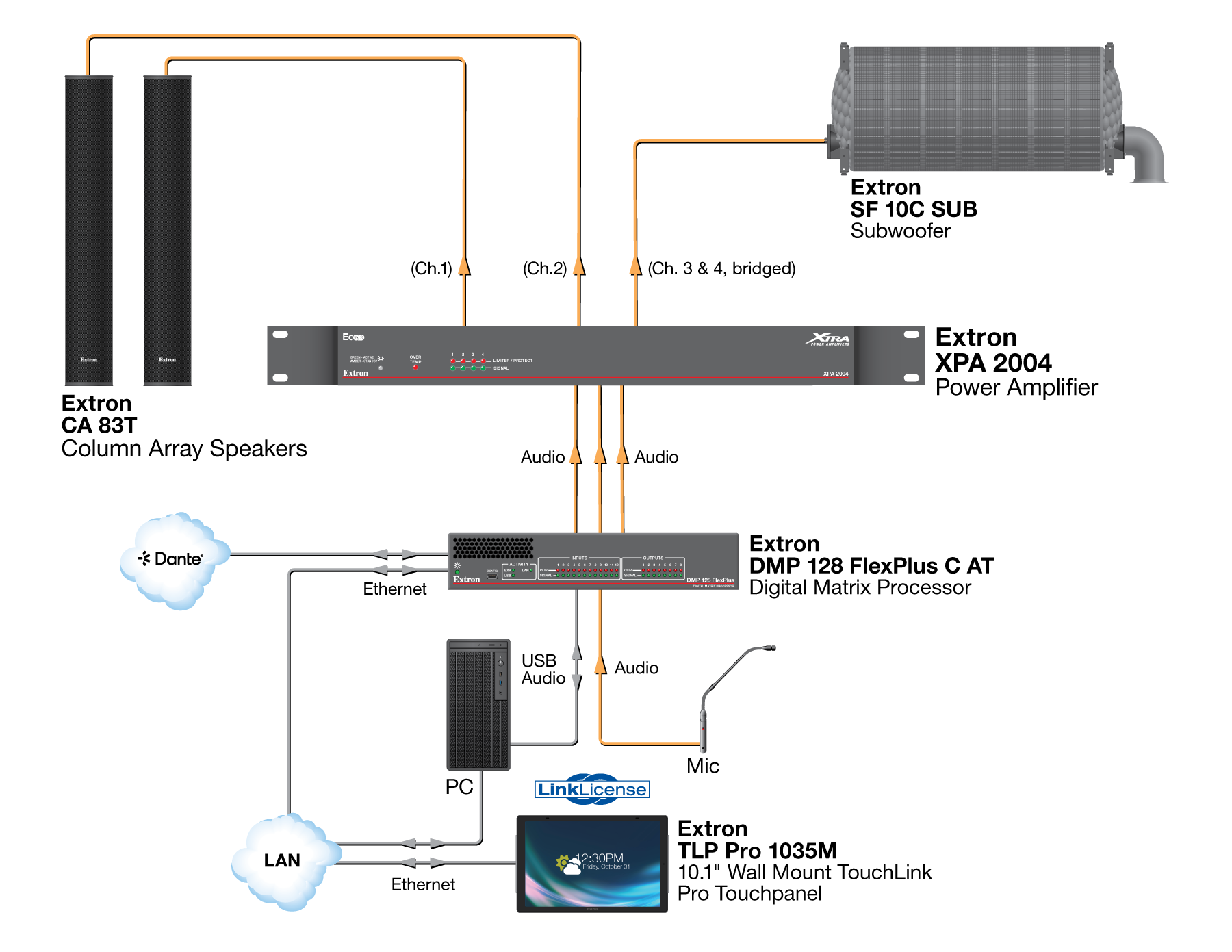

| XPA 2004 |
|
| Audio |
|---|
| Voltage gain | 23x (27 dB) |
| Crosstalk | 75 dB (typical) @ 1 kHz |
| CMRR | 75 dB (typical) @ 1 kHz |
|
| Audio input |
|---|
| Number/signal type | 4 balanced/unbalanced |
| Connectors | (4) 3.5 mm captive screw connectors, 3 pole |
| Impedance | >10k ohms unbalanced/balanced, DC coupled |
| Nominal level | +4 dBu (1.23 Vrms), balanced |
| Maximum level | +21 dBu (8.69 Vrms), balanced |
| Input sensitivity | +4 dBu (1.23 Vrms) |
| Input signal detection threshold | -40 dBu ±3 dB, balanced |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output |
|---|
| Number/signal type | 4 channels, 4 or 8 ohms; or 2 bridged mono, 8 ohms |
| Connectors | (2) 5 mm screw lock captive screw connectors, 4 pole |
| NOTE | These connectors accept wires of 22 AWG to 12 AWG. |
|
| Load impedance | 4 ohms (8 ohms if bridged) minimum |
| Amplifier type | Class D |
| Output power | 100 watts rms per channel, 8 ohms, 1 kHz, 0.05% THD
200 watts rms per channel, 4 ohms, 1 kHz, 0.05% THD
400 watts rms (bridged mono), 8 ohms, 1 kHz, 0.05% THD |
| Frequency response | 20 Hz to 20 kHz, ±1 dB |
| THD + Noise | 0.1%, 20 Hz-20 kHz, 8 ohms, 3 dB below clipping |
| S/N | 100 dB, 20 Hz - 20 kHz, unweighted |
| Damping factor | >100 @ 8 ohms |
|
| Control/remote — amplifier |
|---|
| Control port | (1) 3.5 mm captive screw connector, 2 pole |
| Pin configurations | |
| Standby power control (contact closure) | Pin 1 = GND, pin 2 = standby |
|
| General |
|---|
| Power | Internal
Input: 100-240 VAC, 50-60 Hz |
Power consumption and thermal dissipation
| |
115 VAC, 60Hz |
230 VAC, 50Hz |
AC Line
Current |
AC Power
Consumed |
Thermal
Dissipation |
AC Line
Current |
AC Power
Consumed |
Thermal
Dissipation/ |
| Condition |
A |
W |
W |
BTU/hr |
A |
W |
W |
BTU/hr |
Active (1/8 power), all
channels driven |
8Ω |
0.8 |
89.3 |
39.3 |
134 |
0.44 |
89.9 |
39.9 |
136 |
| 4Ω |
1.3 |
146.5 |
46.5 |
159 |
0.68 |
146.2 |
46.2 |
158 |
| Quiescent (idle) |
0.3 |
28.7 |
28.7 |
98 |
0.20 |
29.0 |
29.0 |
99 |
| Standby |
<0.1 |
<1 |
<1 |
<3 |
<0.1 |
<1 |
<1 |
<3 |
|
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents, with heat sinks on the sides |
| Protection | Clip limiting, thermal, short circuit, DC output |
| Indication | Limiter/Protect LED indicates the onset of clip limiting, thermal cycling, or a short circuit |
| Mounting | |
| Rack mount | Yes, with included mounting brackets |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 17.4" W* x 12.0" D (1U high, full rack wide)
(4.3 cm H x 44.2 cm W* x 30.5 cm D)
*Width excludes rack ears. 19.0" (48.3 cm) W with rack ears. |
| Product weight | 9.2 lbs (4.2 kg) |
| Regulatory compliance | CE, C-tick, UL, c-UL,FCC, Ecofficient Level 3, VCCI, RoHS, WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5677-D15) |
