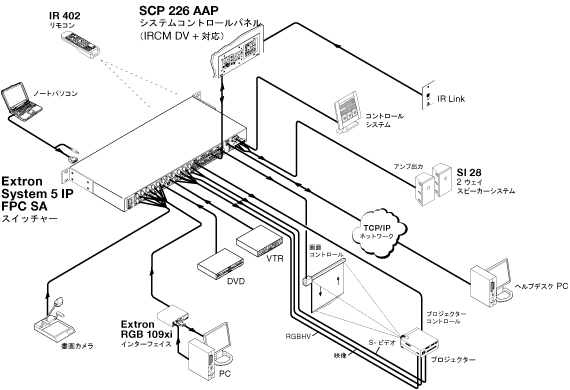

| System 5 IP |
|
| Video |
|---|
| Gain | Unity |
| Bandwidth | 350 MHz (-3 dB), fully loaded |
| Differential phase error | 1° at 3.58 MHz and 4.43 MHz |
| Differential gain error | 1% at 3.58 MHz and 4.43 MHz |
| Crosstalk | -68 dB @ 10 MHz, -39 dB @ 100 MHz |
| Switching speed | <600 ms (max.) |
|
| Video input |
|---|
| Number/signal type | 1 RGBHV, RGBS, RGsB, RsGsBs
2 RGBHV, RGBS, RGsB, RsGsBs, S-video, or composite video
2 S-video or composite video |
| Connectors | 1 female 15-pin HD (RGB)
2 x 5 female BNC (RGB, S-video, or composite video)
2 x 1 female BNC (composite video) and 2 female 4-pin mini DIN (S-video) |
| Nominal level | 1 Vp-p for Y of S-video, and for composite video
0.7 Vp-p for RGB
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | |
| RGB | Analog: 0.3 V to 1.5 Vp-p with no offset |
| S-video, composite video | Analog: 0.4 V to 2.0 Vp-p with no offset |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz to 145 kHz |
| Vertical frequency | 30 Hz to 170 Hz |
| Return loss | |
| RGB | <-40 dB @ 5 MHz |
| S-video | <-25 dB @ 0 to 10 MHz |
| Composite video | <-40 dB @ 0 to 10 MHz |
| DC offset (max. allowable) | 1.5 V |
|
| Video output |
|---|
| Number/signal type | 1 RGBHV, RGBS, RGsB, RsGsBs
1 S-video
1 composite video |
| Connectors | 5 female BNC (RGB)
2 female BNC (S-video)
1 female BNC (composite video) |
| Nominal level | 1 Vp-p for Y of S-video, and for composite video
0.7 Vp-p for RGB
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | |
| RGB | Analog: 0.3 V to 1.5 Vp-p (follows input) |
| S-video, composite video | Analog: 0.4 V to 2.0 Vp-p (follows input) |
| Impedance | 75 ohms |
| Return loss | <-40 dB @ 5 MHz |
| DC offset | ±5 mV with input at 0 offset |
| Switching type | Triple-Action™ (RGB delay) |
|
| Sync |
|---|
| Input type | RGBHV, RGBS, RGsB, RsGsBs |
| Output type | RGBHV, RGBS, RGsB, RsGsBs (follows input) |
| Standards | TTL (RGB), NTSC 3.58, NTSC 4.43, PAL, SECAM |
| Input level | 2.0 V to 5.0 Vp-p |
| Output level | 5.0 Vp-p, unterminated |
| Input impedance | 10k ohms |
| Output impedance | 75 ohms |
| Max. input voltage | 5.0 Vp-p |
| Max. propagation delay | 30 ns |
| Max. rise/fall time | 4 ns |
| Polarity | Positive or negative (follows input) |
|
| Audio |
|---|
| Gain | |
| Lineout | Unbalanced output: 0 dB; balanced output: +6 dB |
| Preamp | Unbalanced output: -6 dB; balanced output: 0 dB at max. volume |
| Frequency response, amplifier models |
| Power amp (4 or 8 ohm) | 20 Hz to 20 kHz, 0 dB to -1.5 dB @ 1 watt output |
| Lineout/preamp | 20 Hz to 20 kHz, 0 dB to -0.5 dB |
| Frequency response, nonamplifier models |
| Lineout/preamp | 20 Hz to 20 kHz, 0 dB to -0.5 dB |
| THD + Noise | <0.15% @ 1 kHz at max. power output |
| S/N at max. power output or line level output (unweighted) |
| Power amp (amplifier models only) | >80 dB at 10 Hz to 22 kHz |
| Preamp | >-100 dB at 20 Hz to 20 kHz |
| Lineout | >-110 dB at 10 Hz to 22 kHz |
| Crosstalk | <-80 dB @ 1 kHz, fully loaded |
| Stereo channel separation | >80 dB @ 1 kHz |
| CMRR | >80 dB @ 20 Hz to 200 Hz, >60 dB @ 20 Hz to 20 kHz |
| Bass adjustment | ±10 dB @ 100 Hz |
| Treble adjustment | ±10 dB @ 10 kHz |
|
| Audio input |
|---|
| Number/signal type | 4 stereo or mono, balanced/unbalanced (inputs 1-4)
1 stereo or mono, unbalanced (input 5) |
| Connectors | (4) 3.5 mm captive screw connectors, 5 pole (inputs 1-4)
(1) 3.5 mm mini audio jack (tip, ring, sleeve) (input 5) |
| Impedance | >10k ohms unbalanced/balanced, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
+4 dBu and 0 dBu are professional audio line level standards.
-10 dBV and -20 dBV are semiprofessional, computer audio, and consumer audio standards. |
|
| Maximum level | +18 dBu |
| Input gain adjustment | -40 dB to +30 dB, adjustable per input |
|
| Audio output — line level (all models) |
|---|
| Number/signal type | 2 stereo or mono, balanced/unbalanced (1 fixed and 1 variable) |
| Connectors | (2) 3.5 mm captive screw connectors, 5 pole |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Gain error | ±0.1 dB channel to channel |
| Nominal level | -10 dBV (316 mV) or +4 dBu (1.23 V) (configurable) |
| Maximum level (600 ohm) | >+18 dBu, balanced at 1%THD+N |
| NOTE | Unbalanced wired outputs have unity gain/attenuation. Balanced outputs result in a 6 dB gain. |
|
|
| Audio output — power amplifier (amplifier models only) |
|---|
| Number/signal type | 1 stereo or mono (default = stereo, configurable via front panel or control software) |
| Connector | (1) 4 position screw terminal |
| Sensitivity | -22 dBV (80 mVrms, -19.8 dBu) for max. power output (adjustable) |
| Power bandwidth at rated maximum power output |
| 4 ohm output | 10 Hz to 20 kHz, ≤0.5% THD |
| 8 ohm output | 20 Hz to 20 kHz, ≤0.8% THD |
| Drive/full power out | 40 watts; 20 watts (rms) per channel, 4 or 8 ohm load |
| Protection | Input limiting, thermal, short circuit |
|
| Control/remote — switcher host ports |
|---|
| Serial control port | 2 bidirectional RS-232: 1 rear panel female 9-pin D connector
1 front panel 2.5 mm stereo mini jack |
| Baud rate and protocol | 38400 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configurations | 2 = TX, 3 = RX, 5 = GND (9-pin D)
tip = TX, ring = RX, sleeve = GND (mini stereo jack) |
| Ethernet control port | 1 female RJ-45 |
| Ethernet data rate | 10/100Base-T, half/full duplex with autodetect |
| Ethernet protocol | ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet |
| Ethernet default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off |
| Web server | Up to 200 simultaneous sessions
7.25 MB nonvolatile user memory |
| Extron remote key pad (SCP) control | (1) 3.5 mm 5-pole captive screw connector (shared with control module and IR Link port) |
| IR remote control | IR 402 (optional)
Front panel: 30' maximum, 40 degrees off axis
Rear panel: 38 kHz, hardwired, modulated |
| Program control | Extron Global Configurator for Windows®
Extron Simple Instruction Set (SIS™)
Microsoft® Internet Explorer ver. 6 or higher, Telnet |
|
| Control — relay |
|---|
| Number/type | 6 momentary or latching (configurable via software) |
| Connectors | (3) 3.5 mm captive screw connectors, 3 pole |
| Connector configuration | Groups A, B, C; each with 1 common and 2 normally open relays (default) |
| Contact rating | 24 V, 1A |
|
| Control — serial ports |
|---|
| Display control port | (1) 3.5 mm captive screw connector, 3 pole for bidirectional RS-232 control (±5 V) |
| Baud rate and protocol | 115200 to 300 baud (9600 baud = default); 8 (default) or 7 data bits; 1(default) or 2 stop bits;
no parity (default), or even or odd parity |
|
| Control — IR/serial ports |
|---|
| IR/serial control ports | (4) 3.5 mm captive screw connectors, 2-pole
Programmable: RS-232 (±5 V), or TTL level (0 to 5 V) infrared up to 1 MHz |
| Baud rate and protocol (RS-232) | 115200 to 300 baud (9600 baud = default); 8 (default) or 7 data bits; 1(default) or 2 stop bits;
no parity (default), or even or odd parity |
| IR learning frequencies | 30 kHz to 62 kHz |
| IR learning distance | 4" (10 cm) to 14" (36 cm) from the front panel |
|
| Control — digital input monitoring port |
|---|
| Number/type | 1 digital input |
| Connector | (1) 3.5 mm captive screw connector, 2 poles of a 3 pole connector |
| NOTE | These pins can be configured as a digital input or as power sense port. |
|
| Pin configuration | G = GND, IN = digital in or power sense |
| Digital inputs | |
| Input voltage range | 0-12 VDC |
| Input impedance | 10k ohms |
| Threshold low to high | >0.7 VDC, nonadjustable |
| Threshold high to low | <0.6 VDC, nonadjustable |
|
| General |
|---|
| Power | 100 VAC to 240 VAC, 50-0 Hz, 50 watts, internal |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +111 °F (0 to +43.9 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vented on sides and top |
| Mounting | |
| Rack mount | Yes, with included brackets |
| Enclosure type | Metal |
| Enclosure dimensions | 1.75" H x 17.5" W x 9.4" D (1U high, full rack wide)
4.4 cm H x 44.4 cm W x 23.9 cm D
(Depth excludes connectors, knob, and buttons. Width excludes rack ears.) |
| Product weight | 6.0 lbs (2.7 kg) |
| Shipping weight | 11 lbs (5 kg) |
| DIM weight | |
| USA/Canada | 10 lbs (5 kg) |
| International | 11 lbs (5 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Accessibility | Section 508 of the Rehabilitation Act (29 U.S.C. 794d) |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (7.6-091609-D16) |
