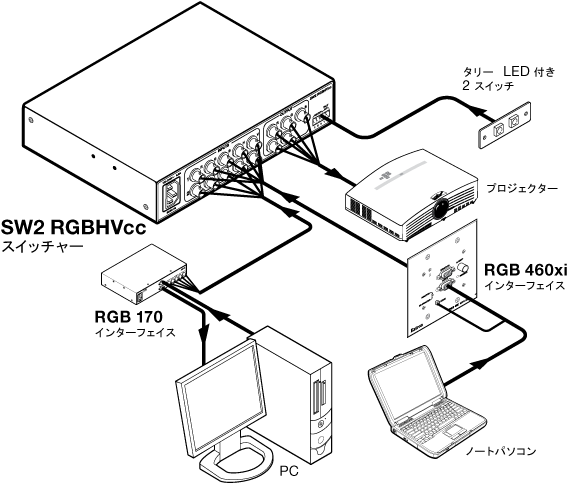

| SW2 RGBHVcc |
|
| Video |
|---|
| Gain | Unity |
| Bandwidth | 350 MHz (-3 dB) |
| Crosstalk | <-68 dB @ 10 MHz |
| Switching speed | 5 ms (max.) |
|
| Video input |
|---|
| Number/signal type | 2 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video |
| Connectors | 2 x 5 female BNC |
| Nominal level | 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | Analog: 0.3 V to 1.5 Vp-p with no offset |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz to 145 kHz |
| Vertical frequency | 30 Hz to 179 Hz |
| Return loss | <-42 dB @ 5 MHz |
| DC offset (max. allowable) | 1.7 V |
|
| Video output |
|---|
| Number/signal type | 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video, (follows input type) |
| Connectors | 5 female BNC |
| Nominal level | 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | 0.3 V to 1.5 Vp-p (follows input) |
| Impedance | 75 ohms |
| Return loss | <-43 dB @ 5 MHz |
| DC offset | ±5 mV with input at 0 offset |
|
| Sync |
|---|
| Input type | RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync |
| Output type | RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync |
| Input level | Analog or TTL, 1.7 V to 5.0 Vp-p |
| Output level | 5.0 Vp-p, unterminated |
| Input impedance | 510 ohms |
| Output impedance | 50 ohms |
| Max. propagation delay | 30 ns |
| Max. rise/fall time | 4 ns |
| Polarity | Positive or negative (follows input) |
|
| Control/remote — switcher |
|---|
| Contact closure/tally output | (1) 3.5 mm captive screw connector, 5 pole |
| Contact closure and tally pin configurations | 1 = input 1 contact closure, 2 = input 2 contact closure, 3 = GND,
4 = input 1 tally output, 5 = input 2 tally output |
|
| General |
|---|
| Power | 100 VAC to 240 VAC, 50-60 Hz, 7 watts, internal |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 8.7" W x 6.0" D (1U high, half rack wide)
4.3 cm H x 22.1 cm W x 15.2 cm D
(Depth excludes connectors.) |
| Product weight | 2 lbs (1 kg) |
| Shipping weight | 4 lbs (2 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (7.6-090809-D6) |
