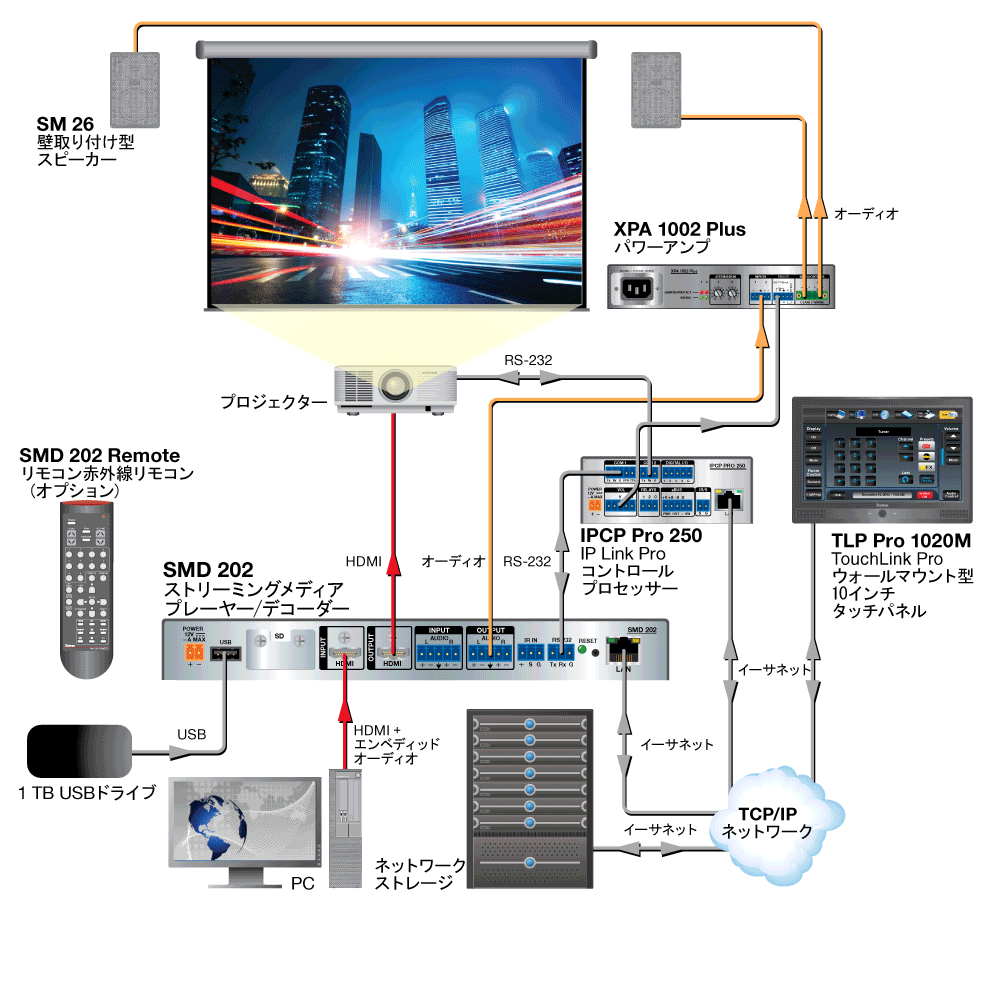

| SMD 202 |
|
| Decoder input |
|---|
| Number/signal type | 1 H.264/AVC digital video and AAC audio over IP |
| Connectors | 1 shielded RJ-45 |
| Ethernet data rate | 10/100/1000Base-T |
| Network file share protocols | CIFS/SMB (SMB 2.x and 3.0, NT LM 0.12), NFS |
| USB host | USB 2.0; Speed and capacity limited by storage device. |
| Connector | 1 rear panel USB type A |
| SD Card Slot | SD, SDHC to speed class 10 / UHS-1 (10-25 MB/sec).
FAT or FAT32 (preferred) file system. |
| Protocols | |
| Security | 802.1x |
| Streaming | Pull: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP, unicast or multicast.
Push: MPEG-2 TS/UDP (ISO/IEC 13818-1), MPEG-2 TS/RTP (RFC 2250, IPTV-ID-0087, ETSI TS 102 034), Direct RTP (RFC 3984), SAP (RFC 2974), SDP (RFC 4566), Unicast or multicast. |
| Stream discovery | SAP (RFC 2974), SDP (RFC 4145, RFC 4566)
|
| Transport | TCP, UDP, RTP, multicast or unicast |
| Container (if included) | MPEG-2 TS (MPEG-2 part 1 or ISO/IEC 13818-1 or ITU-T Rec. H.222.0),
MP4 (MPEG-4 part 14 or ISO/IEC 14496-14) including mp4, m4a, m4v file extensions and compatible containers*,
WAV (containing LPCM audio) |
| NOTE | *MP4 compatible containers are only supported with H.264 video and AAC or PCM audio.
|
|
| Encoding | |
| Audio coding | AAC-LC (MPEG-2 part 7, MPEG-4 part 3, sub part 4 and part 14, MP4 mono or stereo audio, max 384 kbps), G.711 (ITU-T), G.726 (ITU-T ADPCM),
PCM mono or stereo 16 kHz to 96 kHz, 16-bit to 32-bit |
| Video coding | MPEG-4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<40 Mbps over 1 second), MJPEG |
| Timed Text | In stream formats:
MPEG-4 Timed Text (format: FOURCC_sbtl, standard: ISO/IEC 14496-17: 2006)
3GPP Timed Text (format: FOURCC_tx3g, standard: 3GPP TS 26.245
WebVTT (format: FOURCC_wvtt, standard: ISO/IEC 14496-30:2014)
Stand alone text file formats:
SRT with support for international languages. Support for user supplied TTF and OTF fonts.
|
| Image file formats | BMP, JPG, PNG, TIFF up to 1920x1080 (TIFF files using JPEG compression are not supported) |
| Seamless playback | using m3u8 playlists and MPEG-2 TS or "fast start" MP4 clips |
| Playlist formats | m3u, m3u8, pls, jspf, xspf |
|
| Video input and pass-through |
|---|
| Number/signal type | 1 HDMI/DVI digital video |
| Connector | 1 female HDMI type A |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequency | 24 Hz to 75 Hz |
| Resolution range | 640x480 @ 60 Hz through 1920x1200 @ 60 Hz
includes 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K |
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
| NOTE | HDCP content is passed through if the display is authenticated. If not authenticated, the video output is green or black (configurable). |
|
|
| Video processing |
|---|
| Maximum pixel clock | 165 MHz |
| Source rates | 480p up to 1920x1080p @ 60 Hz |
| Chroma subsampling | 4:2:2 and 4:4:4 |
| Latency | <1 second |
|
| Video output |
|---|
| Number/signal type | 1 HDMI/DVI digital video |
| Connector | 1 female HDMI type A |
| Peripheral device power | 200 mA max |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequencies | 24 Hz to 75 Hz (pass-through)
23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz (decoder output) |
| Output resolutions | 640x480, 800x600, 1024x768, 1280x720, 1280x724, 1366x768, 1600x1200, 1920x1200,
480p, 576p, 720p, 1080i, 1080p |
| Standards | DVI 1.0, HDMI 1.4 (HDCP 1.4 with HDMI input selected) |
| NOTE | Appropriate HDMI to DVI-D cables or adapters are required for DVI signal output. |
|
|
| Audio |
|---|
| Supported formats — Pass through | |
| HDMI | LPCM 2.1 (3 channels),
LPCM 5.1 (6 channels),
LPCM 6.1 (7 channels),
LPCM 7.1 (8 channels),
Dolby Digital 5.1 (6 channels).
LPCM formats at bit depths up to 24-bit and sample frequencies up to 192 kHz.
AC-3 Dolby Digital at bit depths up to 24-bit and bit rates up to 640 kbps. |
|
| Audio input |
|---|
| Digital audio input - pass-through | |
| Number/signal type | 1 HDMI embedded digital audio (stereo) |
| Connector | 1 female HDMI type A |
| Standards | HDMI 1.4, HDCP 1.4 |
| Analog audio input - pass-through | |
| Number/signal type | 1 stereo, balanced or unbalanced |
| Connector | (1) 3.5 mm captive screw connector, 5 pole |
| Input impedance | 10k ohms unbalanced, 20k ohms balanced |
| Nominal level | +4 dBu, -10 dBV, adjustable via input gain |
| Maximum level | +21 dBu, balanced or unbalanced |
| CMRR | >70 dB typical @ 20 Hz to 20 kHz |
| Input gain adjustment | -18 dB to +24 dB, 1 dB steps |
|
| Audio processing |
|---|
| Gain | -6 dB unbalanced, 0 dB balanced |
| Frequency response | 20 Hz to 20 kHz, ±0.1 dB |
| THD + Noise | <0.02%, 20 Hz to 20 kHz at maximum output level (unweighted) |
| S/N | >100 dB, at maximum balanced output (unweighted) |
| Stereo channel separation | >90 dB @ 1 kHz |
| Crosstalk | <-100 dB, at 20 Hz to 20 kHz, fully loaded |
| Volume control | -100 dB to 0 dB (control 0-100 in 1 dB steps, default: -30 dB) |
|
| Audio output — Analog |
|---|
| Number/signal type | 1 stereo, balanced/unbalanced |
| Connectors | (1) 3.5 mm captive screw connector, 5 pole |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Nominal level | +4 dBu |
| Maximum level (Hi-Z) | +21 dBu balanced, +15 dBu unbalanced |
| Gain error | +0.1 dB channel to channel |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output — digital |
|---|
| Number/signal type | 1 stereo, HDMI (embedded) |
| Connectors | 1 female HDMI type A |
| Bit depths | 16-bit or 24-bit |
| Sampling rate | 32 kHz, 44.1 kHz, 48 kHz |
| NOTE | Frequency response is limited to 16 kHz with a sampling rate of 32 kHz. |
|
|
| Control/remote |
|---|
| OSD | Interactive on-screen menu with front panel or optional IR remote and support for Chinese, English, French, German, Italian, Japanese, Portuguese, Spanish, and Russian languages. |
| USB | |
| USB configuration ports | 1 front panel female mini USB-B |
| USB standards | USB 2.0, high/full/low speed hosts |
| Serial control | |
| Serial control port | 1 bidirectional RS-232, rear panel 3.5 mm captive screw connector, 3-pole |
| Host control | Dual mode - host control (Extron SIS) or IP to serial pass-through (for display control),
both bidirectional |
| Baud rate and protocol | 300, 600, 1200, 1800, 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200 baud, adjustable; 7 or 8 (default) data bits; 1 (default) or 2 stop bits;
no parity (default), or odd, even, mark, or space parity; no flow control (default), or software flow control |
| Pin configuration | 1 = Tx, 2 = Rx, 3 = GND |
| Ethernet control | |
| Ethernet host port | 1 female RJ-45 connector |
| Ethernet data rate | 10/100/1000Base-T |
| Supported protocols | ARP, Bonjour (mDNS), CIFS/SMB, DHCP, DNS, HTTP, HTTPS, ICMP, IGMPv2 (RFC 2236), IGMPv3 (RFC 3376), IPv4, MIB-II (RFC 3416/17/18), NTPv4 (RFC 4330), RTCP, RTP, RTSP, SAP (RFC2974), SDP (RFC4566), SFTP, SMTP, SNMP V2 (RFC 1213), SNMP v2c, SSH, SSL, SSM (RFC 3569, 4607), TCP, Telnet, TLS, UDP |
| Ethernet default settings | IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off
|
| IR remote control | SMD 202 remote (optional), 38 kHz |
| Program control | Extron Simple Instruction Set (SIS™), Extron DataViewer, Microsoft® Internet Explorer®,
Apple® Safari®*, Mozilla® Firefox®*, Google®* Chrome™*
(*Certain browser depedencies may apply) |
|
| USB device ports |
|---|
| Number/signal type | 1-port USB hub |
| Connector | 1 female USB 2.0 type A |
| Maximum built-in USB hubs | 1 |
| Minimum built-in USB hubs | 1 |
| Available USB power | USB 2.0 port (rear panel) = 500 mA |
|
| Internal storage capacity |
|---|
| Memory capacity | >512 MB* |
| NOTE | *Available space varies based on Firmware version.
*At least 64 MB of free space is required for Firmware updates. |
|
|
| General |
|---|
| Power supply | External (included)
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Device | 13.2 watts, 12 VDC |
| Device and power supply | 15.8 watts, 100-240 VAC, 50-60 Hz |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, with vents |
| Thermal dissipation | |
| Device | 43.7 BTU/hr |
| Device and power supply | 52.6 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Pole mount | Yes, with optional pole mount kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 8.75" W x 6.0" D (half rack wide)
(2.5 cm H x 22.2 cm W x 15.2 cm D)
(Depth excludes connectors.) |
| Product weight | 1.2 lbs (0.5 kg) |
| Regulatory compliance | CE, C-tick, c-UL, UL, FCC Class A, ICES, KC, VCCI |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5804-D10) |
