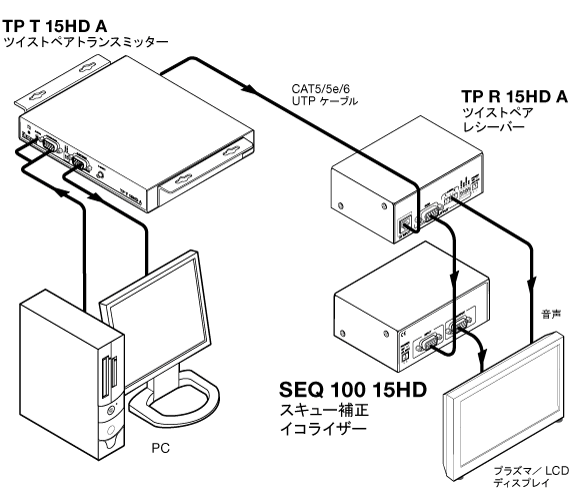

| SEQ 100 15HD |
|
| Video |
|---|
| Gain | Unity |
|
| Video input |
|---|
| Number/signal type | 1 RGBHV, RGBS, RGsB, component video |
| Connectors | 1 female 15-pin HD |
| Nominal level | 1 Vp-p for Y of component video
0.7 Vp-p for RGB and for R-Y and B-Y of component video |
| Minimum/maximum levels | Analog: 0.3 V to 1.45 Vp-p with no offset at unity gain |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz to 130 kHz |
| Vertical frequency | 30 Hz to 150 Hz |
|
| Video output |
|---|
| Number/signal type | 1 RGBHV, RGBS, RGsB, component video |
| Connectors | 1 female 15-pin HD |
| Nominal level | 1 Vp-p for Y of component video
0.7 Vp-p for RGB and for R-Y and B-Y of component video |
| Minimum/maximum levels | 0.3 V to 1.45 Vp-p (follows input) |
| Impedance | 75 ohms |
|
| Sync — pass-through |
|---|
| Input type | RGBHV, RGBS, RGsB |
| Output type | RGBHV, RGBS, RGsB (follows input) |
| Input/output level | TTL: 5.0 Vp-p, unterminated |
| Input impedance | 75 ohms |
| Output impedance | 75 ohms |
| Max. input voltage | 5.0 V p-p |
| Polarity | Positive or negative (follows input) |
|
| General |
|---|
| External Power supply | 100 VAC to 240 VAC, 50/60 Hz, external; to 12 VDC, 1 A, regulated |
| Cooling | Convection, unvented |
| Power input requirements | 12 VDC, 0.2 A |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Rack mount | Yes, with optional 1U, 9.5" deep rack shelf, part #60-190-01 (RSU 129) or 60-604-01 (RSB 129); VersaTools® rack shelf, part #60-190-20 (RSF 123) or 60-604-20 (RSB 123); or VersaTools Back of the Rack Mounting Kit, part #70-367-01 (MBB 100) |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
4.3 cm H x 10.9 cm W x 7.6 cm D
(Depth excludes connectors.) |
| Product weight | 0.6 lbs (0.3 kg) |
| Shipping weight | 2 lbs (1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Listings | UL, CUL |
| Compliances | CE, FCC Class A, VCCI, AS/NZS, ICES |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (7.53-011008-D5) |
