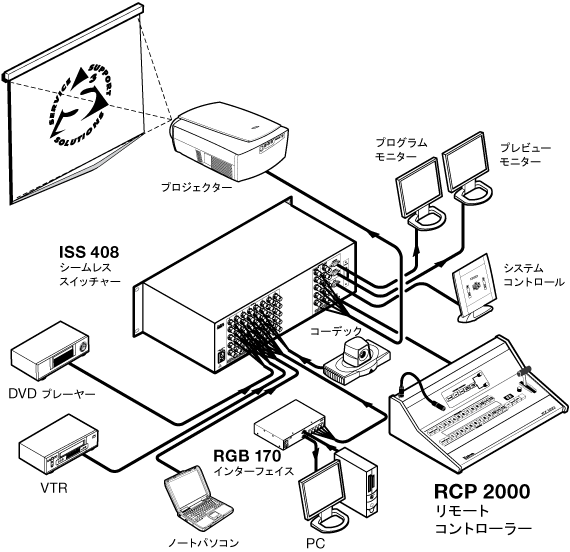

RCP 2000は、ISS 408およびISS 506用リモートコントローラーです。入力選択、トランジション効果の設定、画像調整などを外部から制御できます。イーサネットまたはRS-232ポートからコマンドを送信可能です。ライト付きで暗い場所でも制御できます。

仕様

RCP 2000 Remote Control Panel
Control/remote — control panel
Serial control port	RS-232, 9-pin female D connector
Baud rate and protocol	9600, 8-bit, 1 stop bit, no parity
Serial control pin configurations	2 = TX, 3 = RX, 5 = GND
Ethernet control port	1 RJ-45 female connector
Ethernet data rate	10/100Base-T, half/full duplex with autodetect
Ethernet protocol	ICMP (ping), TCP/IP, Telnet
Program control	Extron's control program for Windows® Extron's Simple Instruction Set (SIS™) Microsoft® Explorer, Netscape Navigator, Telnet
General
Power	100VAC to 240VAC, 50/60 Hz, 60 watts, internal
Ambient temperature/humidity	Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, noncondensing Operating +32° to +122°F (0° to +50°C) / 10% to 90%, noncondensing
Rack mount	No
Enclosure type	Metal
Enclosure dimensions	5.5" H x 17.0" W x 12.0" D (14.0 cm H x 43.2 cm W x 30.5 cm D) (Depth excludes connectors and knobs.)
Product weight	15 lbs (6.8 kg)
Shipping weight	22 lbs (10 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Listings	UL, CUL
Compliances	CE, FCC Class A, VCCI, AS/NZS, ICES
Product warranty	3 years parts and labor
NOTE     Specifications are subject to change without notice.
(7.50-051004-D4)
