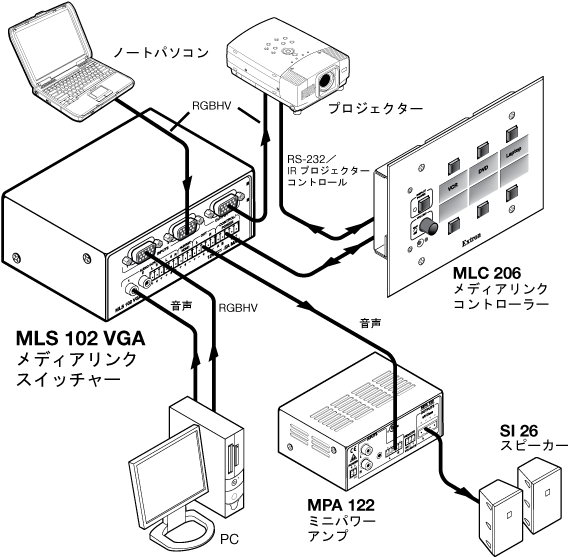

| MLS 102 VGA |
|
| Video |
|---|
| Gain | Unity |
| Bandwidth | 250 MHz (-3 dB) |
| Differential phase error | 0.01°, at 3.58 MHz and 4.43 MHz |
| Differential gain error | 0.01%, at 3.58 MHz and 4.43 MHz |
| Crosstalk | -50 dB @ 5 MHz |
|
| Video input |
|---|
| Number/signal type | 2 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs |
| Connectors | 2 female 15-pin HD |
| Nominal level | 0.7 Vp-p for RGB |
| Minimum/maximum levels | 0.3 V to 2.0 Vp-p with no offset |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz to 150 kHz |
| Vertical frequency | 30 Hz to 150 Hz |
| Return loss | <-45 dB @ 5 MHz |
| DC offset (max. allowable) | 1.5 V |
|
| Video output |
|---|
| Number/signal type | 1 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs |
| Connector | 1 female 15-pin HD |
| Nominal level | 0.7 Vp-p for RGB |
| Minimum/maximum levels | 0.3 V to 2.0 Vp-p |
| Impedance | 75 ohms |
| Return loss | -38 dB @ 5 MHz |
| DC offset | ±5 mV maximum with input at 0 offset |
|
| Sync |
|---|
| Input type | RGBHV, RGBS, RGsB, RsGsBs |
| Output type | RGBHV, RGBS, RGsB, RsGsBs (follows input) |
| Input level | 0.5 V to 5.0 Vp-p |
| Output level | 0.5 V to 5.0 Vp-p, unterminated |
| Input impedance | 75 ohms |
| Output impedance | 75 ohms |
| Max. input voltage | 5.0 Vp-p |
| Max. propagation delay | 30 ns |
| Polarity | Positive or negative (follows input) |
|
| Audio |
|---|
| Gain | Unbalanced output: -6 dB; balanced output: 0 dB (unity) |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.5% @ 1 kHz at nominal level |
| S/N | >90 dB @ 20 Hz to 20 kHz |
| Crosstalk | <-65 dB @ 20 Hz to 20 kHz, <-80 dB @ 1 kHz and below 60 Hz, fully loaded |
| Stereo channel separation | >72 dB @ 20 Hz to 20 kHz |
| CMRR | >75 dB @ 20 Hz to 20 kHz |
|
| Audio input |
|---|
| Number/signal type | 4 stereo/mono, unbalanced (switchable)
1 mono, balanced/unbalanced aux-mix (always active, non-switchable) |
| Connectors | 2 mini stereo jacks (female tip-ring-sleeve connectors)
(3) 3.5 mm captive screw connectors, 3 pole |
| Impedance | >10k ohms unbalanced, >20k ohms balanced, DC coupled |
| Nominal level | -20 dBV (100 mV), -10 dBV (316 mV), 0dBu (0.775 V), or +4 dBu (1.23 V); (configurable) |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
+4 dBu and 0 dBu are professional audio line level standards.
-10 dBV and -20 dBV are semiprofessional, computer audio, and consumer audio standards. |
|
| Maximum level | +14 dBu, (balanced or unbalanced) at stated %THD+N |
| Input gain adjustment | –18 dB to +24 dB, adjustable per input (via RS-232/control software) |
| Aux/Mix level adjustment | -43 dB to +24 dB (adjustable only via front panel) |
|
| Audio output |
|---|
| Number/signal type | 1 stereo or mono, balanced/unbalanced |
| Connectors | (1) 3.5 mm captive screw connector, 5 pole |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Gain error | ±0.1 dB channel to channel |
| Maximum level (Hi-Z) | >+21 dBu, balanced or unbalanced at 1% THD+N |
| Maximum level (600 ohm) | >+15 dBm, balanced or unbalanced at 1% THD+N |
| NOTE | An unbalanced-wired output results in a 6 dB attenuation. A balanced-wired output has unity (0 dB) gain/attenuation. |
|
|
| Control/remote — switcher |
|---|
| Serial control port | RS-232, 3.5 mm, 5 pole captive screw connector |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configuration | A = Tx, B = Rx, D = Gnd |
| Program control | Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power | Supplied by an optional MediaLink Controller (MLC) or an external power supply |
| Power supply | External, included
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts |
| Power input requirements | 12 VDC, 0.4 A |
| Ambient temperature/humidity | Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, noncondensing
Operating +32° to +122°F (0° to +50°C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with optional mini under-desk mounting kit |
| Pole mount | Yes, with optional mini pole mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
(42 mm H x 110 mm W x 76 mm D)
(Depth excludes connectors and buttons.) |
| Product weight | 0.7 lbs (0.3 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4402-D5-091418) |
