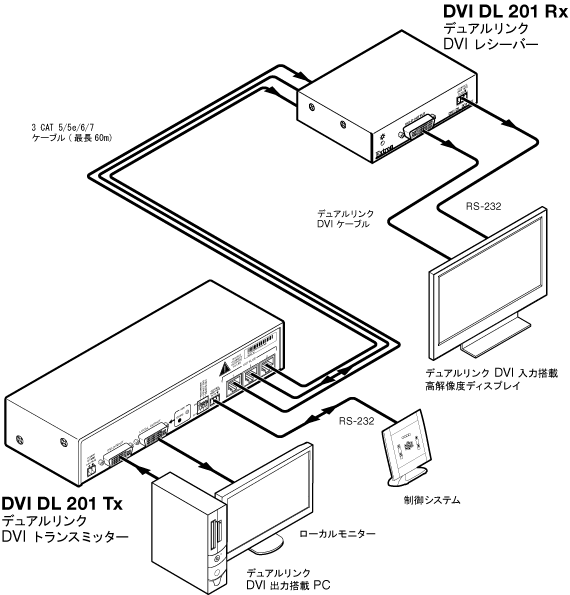

| DVI DL 201 Series |
| NOTE | *Dual link DVI is backwards compatible with all single link DVI/HDMI signals. |
|
|
| Video |
|---|
| Maximum data rate | 10 Gbps (3.3 Gbps per color) |
| Maximum pixel clock | 330 MHz (165 MHz per link) |
| Resolution range | Up to 2560x1600 @ 60 Hz |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI |
|
| Video input and loop-through — transmitter |
|---|
| Number/signal type | 1 dual link DVI-D* input
1 dual link DVI-D* local loop-through |
| Connectors | 2 DVI-I female (1 for input, 1 for loop-through) |
|
| Interconnection between transmitter and receiver |
|---|
| Connectors | (3) RJ-45 per unit for 3 cables connecting the transmitter and receiver |
| Termination standards | TIA/EIA T568A or T568B |
| Signal transmission distance | |
| 1920x1200 or 1080p @ 60 Hz | |
| Extron STP201 cable | Up to 150' (45 m) |
| 2560x1600 @ 60 Hz |
| CAT 5/5e/6 STP or Extron STP201 | Up to 125' (38 m) |
| CAT 5/5e/6 UTP cable | 100' (30 m)
Longer distances are possible with lower rates. |
| NOTE | The transmission distance varies greatly depending on the signal resolution and on the type of cable, graphics card, and display used in the system. |
|
| NOTE | Shielded twisted pair cable provides added protection from outside interference and increases overall signal transmission distance. Extron strongly recommends using shielded twisted pair for optimal performance. |
|
|
| Video output — receiver |
|---|
| Number/signal type | 1 dual link DVI-D* |
| Connectors | 1 DVI-I female |
|
| Control/remote — external device (pass-through) |
|---|
| Serial control port input | |
| Transmitter | RS-232 via (1) 3.5 mm, 3 pole captive screw connector |
| Receiver | 1 set of proprietary signals on a female RJ-45 jack |
| Serial control port output | |
| Transmitter | 1 set of proprietary signals on a female RJ-45 jack |
| Receiver | RS-232 via a 3.5 mm, 3 pole captive screw connector |
| NOTE | Protocol is mirrored between the transmitter and the receiver. |
|
| Serial control pin configurations | Captive screw connectors: 1 = Tx, 2 = Rx, 3 = GND |
|
| General |
|---|
| Recommended cable type | CAT 5/5e/6 (shielded or unshielded) or Extron STP201 |
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 2 A, 24 watts |
| Power consumption | |
| DVI DL 201 Tx | 8.1 watts, 12 VDC |
| DVI DL 201 Rx | 9.4 watts, 12 VDC |
| NOTE | Each transmitter and receiver can be powered locally by an external power supply. The receiver can be powered remotely by a power supply connected to the transmitter on the other end of the CAT 5/5e/6 or Extron STP201 cable. |
|
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with optional through-desk mounting kit |
| Pole mount | Attachable to a projector pole mount using optional mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | |
| DVI DL 201 Tx | 1.75" H x 8.75" W x 3.0" D (1U high, half rack wide)
4.4 cm H x 22.2 cm W x 7.6 cm D
(Depth excludes connectors.) |
| DVI DL 201 Rx | 1.0" H x 4.3" W x 3.0" D (quarter rack wide)
(2.5 cm H x 10.9 cm W x 7.6 cm D)
(Depth excludes connectors.) |
| Product weight | Transmitter: 0.6 lbs (0.3 kg)
Receiver: 0.3 lbs (0.1 kg)
Transmitter and receiver: 0.9 lbs (0.4 kg) |
| Shipping weight | 2 lbs (1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A**, ICES, VCCI |
| NOTE | **FCC testing is conducted with STP (shielded twisted pair) cable. |
|
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (8.0-032112-D7) |
