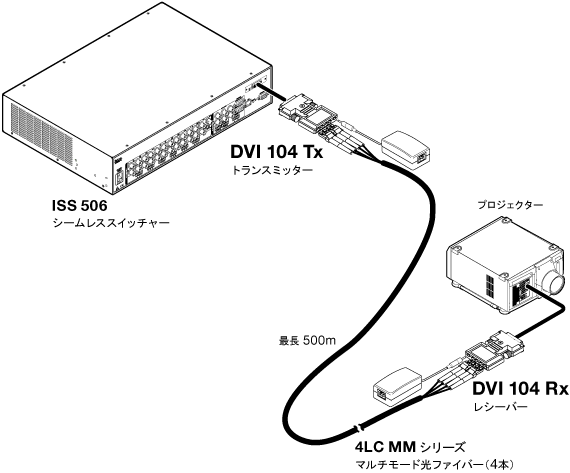

DVI 104光ファイバーエクステンダーは、シングルリンクDVI-D信号の伝送距離を、標準的なDVIケーブルの長さ制限（5 m）を大幅に超えて延長するためのトランスミッター／レシーバーセットです。高い信頼性と高解像度画像の伝送性能を実現するためにゼロコンプレッションデジタルテクノロジーが採用されており、1080p/60Hzおよび2Kを含む最大1920×1200解像度のコンピュータービデオ画像をピクセル単位で圧縮せずに伝送します。DVI 104は、4本のマルチモード光ファイバーケーブルを使ってDVI-D信号を最長500 m伝送できます。

仕様

DVI 104 Tx/Rx
NOTE     The DVI 104 Tx/Rx consists of a transmitter (DVI 104 Tx) and a receiver (DVI 104 Rx) with fiber optic cables linking the two units.
Optical fiber interconnection between transmitter and receiver
Number/type	4 fiber optic, 50/125 µm multimode
Connectors	4 female LC connectors
Operating distance	Up to 500 m (1,640')
NOTE     Operating distance is approximate. This is a typical distance. The maximum distance may be greater than these typical numbers depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Nominal peak wavelength	850 nm
Optical loss budget	10.5 dB, maximum
Video
Gain	Unity
Maximum data rate	4.95 Gbps (1.65 Gbps per color)
Maximum pixel clock	165 MHz
Resolution range	Up to 1920x1200 or 1080p @ 60 Hz
Formats	RGB and YCbCr digital video
Standards	DVI 1.0
Video input — transmitter
Number/signal type	1 single link DVI
Connectors	1 male DVI-D
Video output — receiver
Number/signal type	1 single link DVI
Connectors	1 male DVI-D
General
Power supply	External: Input: 100-240 VAC, 50-60 Hz Output: 5 VDC, 3A, 15 watts  The source device outputs 5 VDC on pin 14 of a DVI connector that can power the transmitter.
Power consumption
Transmitter
Device	1.0 watts, 5 VDC
Receiver
Device	1.8 watts, 5 VDC
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting	No
Enclosure type	Plastic
Enclosure dimensions	0.6" H x 1.5" W x 2.3" D (1.5 cm H x 3.9 cm W x 5.9 cm D) (Depth excludes DVI connector.)
Product weight	0.1 lbs (0.04 kg) each Tx/Rx unit
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE
EMI/EMC	CE, FCC Class A
Environmental	Complies with the appropriate requirements of RoHS.
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(8.0-052616-D7)

梱包時の寸法および質量
製品番号	高さ	幅	奥行き	質量
60-977-01	7.6 cm	22.9 cm	34.3 cm	0.98 kg
